General Key Specifications & Special Features:

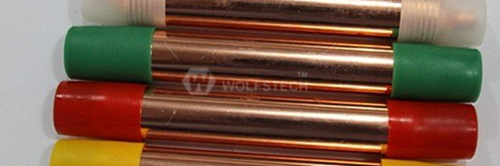

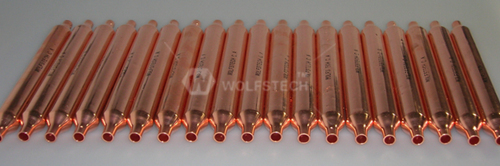

l Wolfstech’s Vertical and Horizontal Copper Accumulators are extensively used in low temperature refrigeration, heat-pump, and some residential air-conditioning applications. They hold unused system charge to prevent liquid slugging of the compressor and excessive refrigerant dilution of the compressor oil;
l Oil-returned Orifice, Screened Baffle, and Spun available as per customer’s requests;
l R22, R134a, R407C, and R410a Refrigerants;
Technical Parameters:
|
Model
|
Overall Length
（mm）
|
Standard Nominal Size（MM）
|
Overall Diameter
(mm)
|
Model
|
Overall Length
（mm）
|
Standard Nominal Size（MM）
|
Overall Length
(mm)
|
|
Inlet
|
Outlet
|
Inlet
|
Outlet
|
|
Vertical Copper Accumulators
|
Horizontal Accumulator and Mufflers
|
|
CYQ-V001
|
190
|
13.2
|
13.2
|
28.5
|
CYQ-H009
|
200
|
3/8”
|
3/8”
|
31.75
|
|
CYQ-V002
|
190
|
9.2
|
9.2
|
28.5
|
CYQ-H010
|
97
|
1/2”
|
1/2”OD
|
28.58
|
|
CYQ-V003
|
190
|
13.2
|
13.2
|
28.5
|
CYQ-H011
|
97
|
1/2”
|
5/8”OD
|
28.58
|
|
CYQ-V004
|
300
|
12.8
|
12.8
|
40
|
CYQ-H012
|
160
|
1/2”
|
1/2”
|
31.75
|
|
Horizontal Accumulator and Mufflers
|
CYQ-H013
|
145
|
3/8”
|
1/2”
|
31.75
|
|
CYQ-H001
|
150
|
1/4”
|
1/4”
|
18.85
|
CYQ-H014
|
200
|
1/2”
|
1/2”
|
38.1
|
|
CYQ-H002
|
184
|
1/4”
|
1/4”
|
31.75
|
CYQ-H015
|
275
|
1/2”
|
1/2”
|
38.1
|
|
CYQ-H003
|
166
|
5/16”
|
5/16”
|
22.23
|
CYQ-H016
|
245
|
1/2”
|
1/2”
|
38.1
|
|
CYQ-H004
|
160
|
5/16”
|
5/16”
|
22.23
|
CYQ-H017
|
120
|
1/2”
|
1/2”
|
50
|
|
CYQ-H005
|
157
|
5/16”
|
3/8”
|
35
|
CYQ-H018
|
225
|
1/2”
|
1/2”
|
50
|
|
CYQ-H006
|
110
|
3/8”
|
3/8”OD
|
28.58
|
CYQ-H019
|
247
|
1/2”
|
1/2”
|
50
|
|
CYQ-H007
|
100
|
3/8”
|
3/8”
|
28.58
|
CYQ-H020
|
300
|
1/2”
|
1/2”
|
55
|
|
CYQ-H008
|
145
|
3/8”
|
3/8”
|
31.75
|
CYQ-H020
|
300
|
5/8”
|
5/8”
|
64
|
