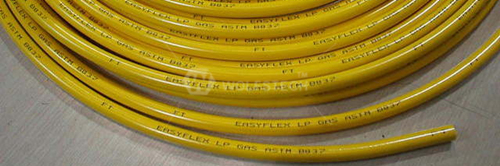

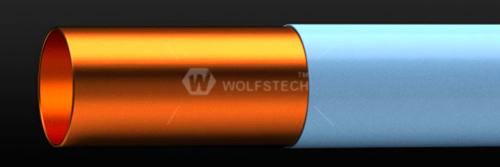

PVC/PE Coated LPG/CNG Copper Tube/ Pipe




Standard:
Copper Tube made from Deoxidized High Phosphorus Copper or Deoxidized Low Phosphorus Copper; Cu≥99.9%; Good joinability, Long life (50years), and Bendable. As per ASTM B68, AS1572, JIS H3300, EN12449 and BS2871-2.
PVC Sheath made from eco-friendly material; ROHS assured; Good Weatherability, Long life(10years), and Beautiful Appearance.

How Furnished:
Pancake Coil, Bunch Coil, Straight Length;
*If customers need other forms, please check with us for the possibility.

With Wire or without Wire:
We can supply tube-with-wire type, coated by PVC Sheath, as per customers’ choice. The tube-with-wire type is unique design with our patent specially for CNG/LPG transport, which can improve efficiency and reduce cost for installation of Auto CNG/LPG system.


Specification:
Model No.
Copper Tube
PVC Sheath
Working Pressure
(psi)
O.D.XW.T.
Length
Wall Thick.
Length
Color
FSG-001
1/4”x20swg
7.5mtr/
25feet

15mtr/
50feet 30mtr/
100feet

1/16”
7.5mtr/
25feet

15mtr/
50feet

30mtr/
100feet

Red/ Blue/ Yellow/ White/ Black



1891
FSG-002
5/16”x20swg
1/16”
1513
FSG-003
3/8”x20swg
1/16”
1265
FSG-004
1/2”x20swg
1/16”
945
FSG-005
6mmx0.8mm
1.5mm
1760
FSG-006
6mmx1mm
1.5mm
2211
FSG-007
8mmx1mm
1.5mm
1658
FSG-008
10mmx1mm
1.5mm
1324
FSG-009
12mmx1mm
1.5mm
1091

Note: PE as high-grade coating materials, replacing PVC, is available as per customer’s requests.
