General Key Specifications & Special Features:

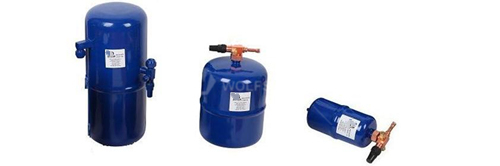

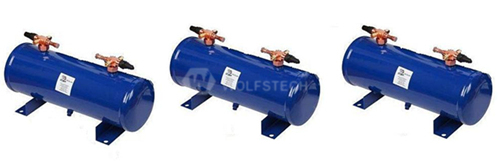

·Wolfstech’s Suction Line Accumulators are essential components for heat pump applications. They help safe holding volume(relative to the system’s total charge), protected flow control for positive refrigerant and oil turn, and minimum pressure drop across the accumulator;
·From 1/4 through 12 tons Application on heat pump and refrigeration systems ;
·R22, R134a, R407c,R410a Refrigerants;
·Working Temperature:-300C-+1200C;
Technical Parameters:
| Model |
Inlet Pipe ID(mm) |
Outlet Pipe(mm) |
Overall Diameter (mm) |
Volume(L) |
| QFQ-141 |
9.52 |
14 |
31.75 |
0.05 |
| QFQ-145 |
9.52 |
14 |
40 |
0.09 |
| QFQ-107 |
9.52 |
14 |
54.2 |
0.28 |
| QFQ-720 |
12 |
14 |
54.5 |
0.35 |
| Q-GSL-B01 |
10 |
12.7 |
60 |
0.40 |
| QFQ-937 |
12.7 |
15.88 |
64 |
0.45 |
| QFQ-304 |
12 |
15 |
74 |
0.60 |
| Q-GMAC-74.7 |
12.7 |
14 |
74.7 |
0.64 |
| QFQ-905 |
12.7 |
15.88 |
75 |
0.61 |
| QFQ-721 |
15 |
18 |
80 |
0.65 |
| QFQ-722 |
15 |
20 |
80 |
1.00 |
| QFQ-318 |
17 |
17 |
89 |
1.40 |
