PRODUCT
|
DESCRIPTION
|
TUBE MATERIAL
|
FIN MATERIAL
|
TUBE SIZE
|
FIN SIZE
|
|

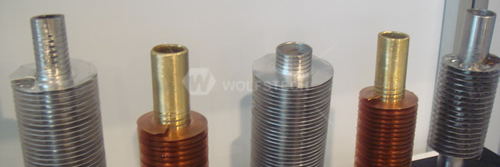

High Fin Tube
|
Extruded Fin Tube
|
All Kind of Material can be applied
|
Aluminum A1050, A6061
|
15.88~50.8
|
7~11.5Fins/Inch
Fin Height Max 16mmH
|
|
L-Fin Tube
(Wrap On Type)
|
All Kind of Material can be applied
|
Copper C1100, C1220
|
12.70~50.8
|
7~11.5Fins/Inch
Fin Height Max 16mmH
|
|
G-Fin Tube (Imbedded Type)
|
Aluminum A1100, A1050, A1060
|
|

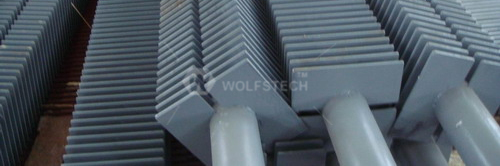

High Frequency Welded Fin Tube
|
Carbon Steel Tube
|
Carbon Steel Tube
|
12.70~160
|
1.5~7Fins/Inch
0.8~3.2mm. Thickness
|
|
Stainless Steel Tube
|
Stainless Steel Tube
|
|
Alloy Steel Material
|
Alloy Steel Material
|
|
Integral Copper & Copper Alloy High Fin Tube
|
C12200, C11000, C70600
|
C12200, C11000, C70600
|
15.88~22.23
|
5~9Fins/Inch
Max 12mm.H
|
|

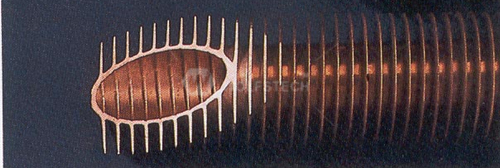

Oval Fin Tube
|
Carbon Steel Tube
|
Carbon Steel Tube
|
All Size Available
|
5~15Fins/Inch
|
|
Stainless Steel Tube
|
Stainless Steel Tube
|
|
Alloy Steel Material
Copper &Copper Alloy Tube
|
Alloy Steel Material
Copper &Copper Alloy Tube
|
|
Low Fin Tube
|
Low Fin Tube
|
All Kind of Material
|
--
|
9.52~40
|
19~54Fins/Inch
|
|
Turbo-C Tube
|
|
Turbo-E Tube
|
|

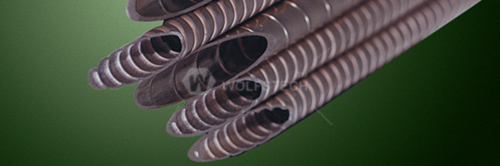

Corrugated Tube
|
All Kind of Material
|
--
|
6.35~40
|
2~9Fins/Inch
|
|
Inner Ridged Tube
|
C12200
|
--
|
7.93~15.88
|
60~75Fins/Inch
|
|
Flower Tube
|
C12200
|
--
|
16.0~19.0
|
12~15Fins/Inch
|
