General Key Specifications & Special Features:

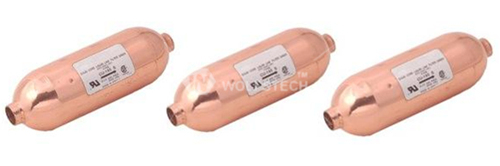

l The Copper Filter Dryer/Copper Spun Desiccant Dryer is installed ahead of throttling elements in air-conditioner, refrigerator and freezer. It helps absorb the remained moisture and filtrate contamination that may block capillary, so as to avoid system block by ice or by dirt;
l R22, R134a, R407C, and R410a Refrigerants;
l Mesh Number of Screen: 100mesh/In, 150mesh/In;
l Water Residual: ≤10%;
l All inlets and outlets protected by plastic caps, Solder Seal or Vacuum Plastic Bags;
Working Condition:
|
Refrigerants
|
R22, R134a
|
R407c
|
R410a
|
|
Molecular Sieve
|
XH-9
|
XH-10C,XH-10,XH-11
|
|
Working Pressure
|
3.0Mpa
|
4.15Mpa
|
Technical Parameters:
|
Part Number
|
Molec. Sieve
|
Filter Body Size
|
Connection （Flare/SAE）
|
|
(g)
|
Dia.(mm)
|
Length(mm)
|
Length
|
Inlet
|
Outlet
|
|
One Inlet One Outlet
|
GGQ-10
|
10
|
16
|
113
|
-
|
6.35
|
2.5
|
|
GGQ-15
|
15
|
19
|
115
|
-
|
6.35
|
2.5
|
|
GGQ-20
|
20
|
24
|
125
|
-
|
6.35
|
2.5
|
|
GGQ-30
|
30
|
24
|
140
|
-
|
6.35
|
2.5
|
|
GGQ-40
|
40
|
24
|
150
|
-
|
6.35
|
3.1
|
|
GGQ-50
|
50
|
29
|
160
|
-
|
6.35
|
3.1
|
|

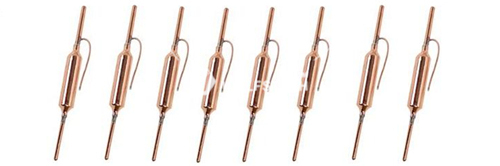

Two Inlet One Outlet
|
GGQ-10
|
10
|
19
|
105
|
225
|
6.35/2.5
|
6.35
|
|
GGQ-15
|
15
|
19
|
125
|
250
|
6.35/2.5
|
6.35
|
|
GGQ-20
|
20
|
24
|
120
|
245
|
6.35/2.5
|
6.35
|
|
GGQ-25
|
25
|
24
|
140
|
265
|
6.35/3.1
|
6.35
|
|
GGQ-30
|
30
|
24
|
150
|
275
|
6.35/3.1
|
6.35
|
|
GGQ-50
|
50
|
30
|
168
|
315
|
6.35/3.1
|
6.35
|
